Data Visualization with Python

Pandas Built-in Data Visualization

In this lecture we will learn about pandas built-in capabilities for data visualization! It's built-off of matplotlib, but it baked into pandas for easier usage!

Hopefully you can see why this method of plotting will be a lot easier to use than full-on matplotlib, it balances ease of use with control over the figure. A lot of the plot calls also accept additional arguments of their parent matplotlib plt. call.

The data we'll use in this part:

	Method/Operator	Description/Example
import numpy as np import pandas as pd %matplotlib inline df1 = pd.read_csv('Df1.csv',index_col=0) df2 = pd.read_csv('Df2.csv')
Style Sheets	`plt.style.use('')`	Matplotlib has style sheets you can use to make your plots look a little nicer. These style sheets include plot_bmh,plot_fivethirtyeight,plot_ggplot and more. They basically create a set of style rules that your plots follow. I recommend using them, they make all your plots have the same look and feel more professional. You can even create your own if you want your company's plots to all have the same look (it is a bit tedious to create on though). Here is how to use them. Before plt.style.use() your plots look like this: df1['A'].hist()
		Call the style: import matplotlib.pyplot as plt plt.style.use('ggplot') Now your plots look like this: df1['A'].hist()

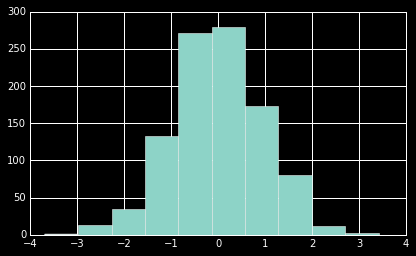

		plt.style.use('bmh') df1['A'].hist()
		plt.style.use('dark_background') df1['A'].hist()

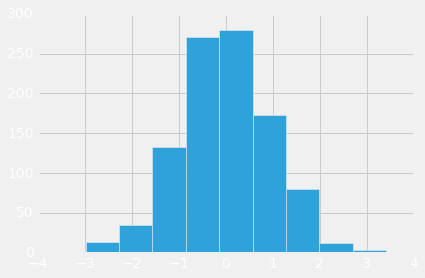

		plt.style.use('fivethirtyeight') df1['A'].hist()
Plot Types		There are several plot types built-in to pandas, most of them statistical plots by nature: `df.plot.area`, `df.plot.barh`, `df.plot.density`, `df.plot.hist`, `df.plot.line`, `df.plot.scatter`, `df.plot.bar`, `df.plot.box`, `df.plot.hexbin`, `df.plot.kde`, `df.plot.pie`

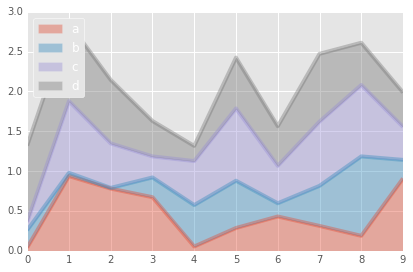

	Area `df.plot.area`	df2.plot.area(alpha=0.4)

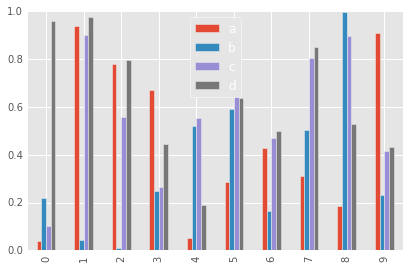

	Barplots `df.plot.bar()`	df2.plot.bar()
	Barplots `df.plot.bar()`	df2.plot.bar(stacked=True)

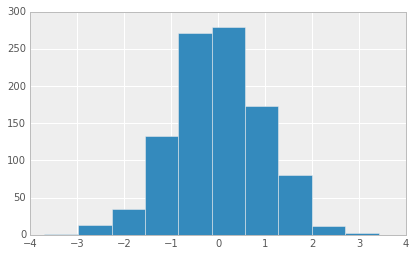

	Histograms `df.plot.hist()`	df1['A'].plot.hist(bins=50)
	Line Plots `df.plot.line()`	df1.plot.line(x=df1.index,y='B',figsize=(12,3),lw=1)
	Scatter Plots `df.plot.scatter()`	df1.plot.scatter(x='A',y='B')
		You can use c to color based off another column value Use cmap to indicate colormap to use. For all the colormaps, check out: http://matplotlib.org/users/colormaps.html df1.plot.scatter(x='A',y='B',c='C',cmap='coolwarm')
		Or use s to indicate size based off another column. s parameter needs to be an array, not just the name of a column: df1.plot.scatter(x='A',y='B',s=df1['C']*200)

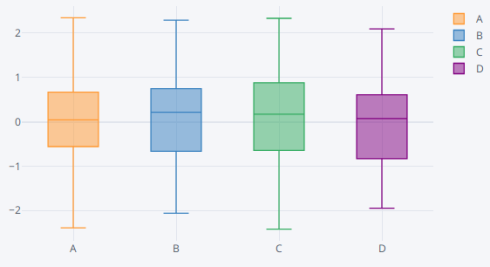

	BoxPlots `df.plot.box()`	df2.plot.box() # Can also pass a by= argument for groupby
	Hexagonal Bin Plot `df.plot.hexbin()`	Useful for Bivariate Data, alternative to scatterplot: df = pd.DataFrame(np.random.randn(1000, 2), columns=['a', 'b']) df.plot.hexbin(x='a',y='b',gridsize=25,cmap='Oranges')
	Kernel Density Estimation plot (KDE) `df2.plot.kde()`	df2['a'].plot.kde()
	Kernel Density Estimation plot (KDE) `df2.plot.kde()`	df2.plot.density()

Data visualization with Matplotlib

Matplotlib is the "grandfather" library of data visualization with Python. It was created by John Hunter. He created it to try to replicate MatLab's (another programming language) plotting capabilities in Python. So if you happen to be familiar with matlab, matplotlib will feel natural to you.

It is an excellent 2D and 3D graphics library for generating scientific figures.

ahora Some of the major Pros of Matplotlib are:

Generally easy to get started for simple plots
Support for custom labels and texts
Great control of every element in a figure
High-quality output in many formats
Very customizable in general

References:

The project web page for matplotlib: http://www.matplotlib.org
The source code for matplotlib: https://github.com/matplotlib/matplotlib
A large gallery showcaseing various types of plots matplotlib can create. Highly recommended!: http://matplotlib.org/gallery.html
A good matplotlib tutorial: http://www.loria.fr/~rougier/teaching/matplotlib

But most likely you'll be passing numpy arrays or pandas columns (which essentially also behave like arrays). However, you can also use lists.

Matplotlib allows you to create reproducible figures programmatically. Let's learn how to use it! Before continuing this lecture, I encourage you just to explore the official Matplotlib web page: http://matplotlib.org/

Installation

conda install matplotlib

Or without conda:

pip install matplotlib

Importing:

import matplotlib.pyplot as plt

You'll also need to use this line to see plots in the notebook:

%matplotlib inline

That line is only for jupyter notebooks, if you are using another editor, you'll use: plt.show() at the end of all your plotting commands to have the figure pop up in another window.

		Description/Example	Output/Figure
Array example: import numpy as np x = np.linspace(0, 5, 11) y = x ** 2 x # Output: array([0. , 0.5, 1. , 1.5, 2. , 2.5, 3. , 3.5, 4. , 4.5, 5. ]) y # Output: array([ 0. , 0.25, 1. , 2.25, 4. , 6.25, 9. , 12.25, 16. , 20.25, 25. ])

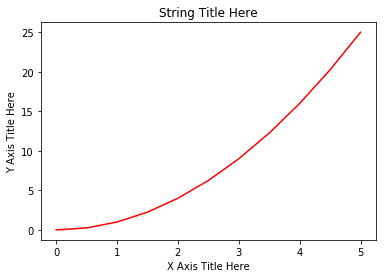

Basic example		plt.plot(x, y, 'r') # 'r' is the color red plt.xlabel('X Axis Title Here') plt.ylabel('Y Axis Title Here') plt.title('String Title Here') plt.show()

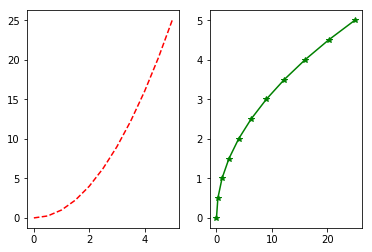

Basic example	Creating Multiplots on Same Canvas	# plt.subplot(nrows, ncols, plot_number) plt.subplot(1,2,1) plt.plot(x, y, 'r--') # More on color options later plt.subplot(1,2,2) plt.plot(y, x, 'g*-');
Matplotlib Object Oriented Method		Now that we've seen the basics, let's break it all down with a more formal introduction of Matplotlib's Object Oriented API. This means we will instantiate figure objects and then call methods or attributes from that object. The main idea in using the more formal Object Oriented method is to create figure objects and then just call methods or attributes off of that object. This approach is nicer when dealing with a canvas that has multiple plots on it. To begin we create a figure instance. Then we can add axes to that figure: # Create Figure (empty canvas) fig = plt.figure() # Add set of axes to figure axes = fig.add_axes([0.1, 0.1, 0.8, 0.8]) # left, bottom, width, height (range 0 to 1) # Plot on that set of axes axes.plot(x, y, 'b') axes.set_xlabel('Set X Label') # Notice the use of set_ to begin methods axes.set_ylabel('Set y Label') axes.set_title('Set Title')
		Code is a little more complicated, but the advantage is that we now have full control of where the plot axes are placed, and we can easily add more than one axis to the figure: # Creates blank canvas fig = plt.figure() axes1 = fig.add_axes([0.1, 0.1, 0.8, 0.8]) # main axes axes2 = fig.add_axes([0.2, 0.5, 0.4, 0.3]) # inset axes # Larger Figure Axes 1 axes1.plot(x, y, 'b') axes1.set_xlabel('X_label_axes2') axes1.set_ylabel('Y_label_axes2') axes1.set_title('Axes 2 Title') # Insert Figure Axes 2 axes2.plot(y, x, 'r') axes2.set_xlabel('X_label_axes2') axes2.set_ylabel('Y_label_axes2') axes2.set_title('Axes 2 Title');

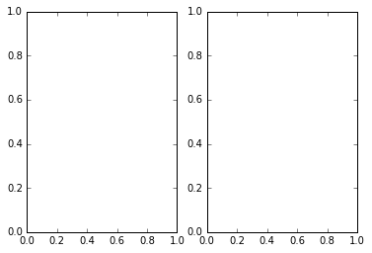

	`subplots()`	The plt.subplots() object will act as a more automatic axis manager: # Use similar to plt.figure() except use tuple unpacking to grab fig and axes fig, axes = plt.subplots() # Now use the axes object to add stuff to plot axes.plot(x, y, 'r') axes.set_xlabel('x') axes.set_ylabel('y') axes.set_title('title');
		Then you can specify the number of rows and columns when creating the subplots() object: # Empty canvas of 1 by 2 subplots fig, axes = plt.subplots(nrows=1, ncols=2)
		Axes is an array of axes to plot on: axes # Output: array([<matplotlib.axes._subplots.AxesSubplot object at 0x111f0f8d0>, <matplotlib.axes._subplots.AxesSubplot object at 0x1121f5588>], dtype=object) We can iterate through this array: for ax in axes: ax.plot(x, y, 'b') ax.set_xlabel('x') ax.set_ylabel('y') ax.set_title('title') # Display the figure object fig
		A common issue with matplolib is overlapping subplots or figures. We ca use fig.tight_layout() or plt.tight_layout() method, which automatically adjusts the positions of the axes on the figure canvas so that there is no overlapping content: fig, axes = plt.subplots(nrows=1, ncols=2) for ax in axes: ax.plot(x, y, 'g') ax.set_xlabel('x') ax.set_ylabel('y') ax.set_title('title') fig plt.tight_layout()
	Figure size, aspect ratio and DPI	Matplotlib allows the aspect ratio, DPI and figure size to be specified when the Figure object is created. You can use the `figsize` and `dpi` keyword arguments. `figsize` is a tuple of the width and height of the figure in inches `dpi` is the dots-per-inch (pixel per inch). For example: fig = plt.figure(figsize=(8,4), dpi=100) # Output: <Figure size 800x400 with 0 Axes>
	Figure size, aspect ratio and DPI	The same arguments can also be passed to layout managers, such as the `subplots` function: fig, axes = plt.subplots(figsize=(12,3)) axes.plot(x, y, 'r') axes.set_xlabel('x') axes.set_ylabel('y') axes.set_title('title');
	Saving figures	Matplotlib can generate high-quality output in a number formats, including PNG, JPG, EPS, SVG, PGF and PDF. To save a figure to a file we can use the `savefig` method in the `Figure` class: fig.savefig("filename.png") Here we can also optionally specify the DPI and choose between different output formats: fig.savefig("filename.png", dpi=200)
	Legends, labels and titles	Figure titles A title can be added to each axis instance in a figure. To set the title, use the `set_title` method in the axes instance: ax.set_title("title");
		Axis labels Similarly, with the methods `set_xlabel` and `set_ylabel`, we can set the labels of the X and Y axes: ax.set_xlabel("x") ax.set_ylabel("y");

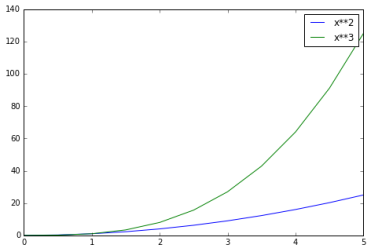

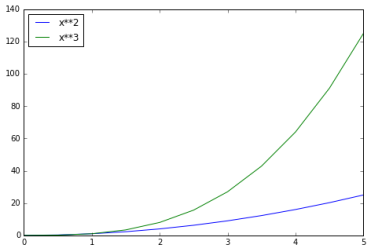

		Legends You can use the label="label text" keyword argument when plots or other objects are added to the figure, and then using the legend method without arguments to add the legend to the figure: fig = plt.figure() ax = fig.add_axes([0,0,1,1]) ax.plot(x, x2, label="x2") ax.plot(x, x3, label="x3") ax.legend()	Notice how are legend overlaps some of the actual plot!
		The legend function takes an optional keyword argument loc that can be used to specify where in the figure the legend is to be drawn. The allowed values of loc are numerical codes for the various places the legend can be drawn. See the documentation page for details. Some of the most common loc values are: # Lots of options.... ax.legend(loc=1) # upper right corner ax.legend(loc=2) # upper left corner ax.legend(loc=3) # lower left corner ax.legend(loc=4) # lower right corner # .. many more options are available # Most common to choose ax.legend(loc=0) # let matplotlib decide the optimal location fig

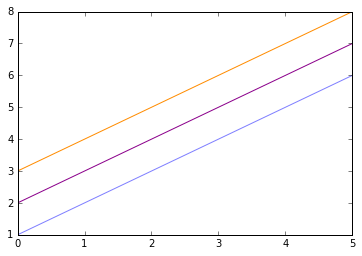

	Setting colors, linewidths, linetypes	Colors with MatLab like syntax: We can define the colors of lines and other graphical elements in a number of ways. First of all, we can use the MATLAB-like syntax where `'b'` means blue, `'g'` means green, etc. The MATLAB API for selecting line styles are also supported: where, for example, 'b.-' means a blue line with dots: # MATLAB style line color and style fig, ax = plt.subplots() ax.plot(x, x2, 'b.-') # blue line with dots ax.plot(x, x3, 'g--') # green dashed line
		Colors with the color= parameter: We can also define colors by their names or RGB hex codes and optionally provide an alpha value using the `color` and `alpha` keyword arguments. Alpha indicates opacity. fig, ax = plt.subplots() ax.plot(x, x+1, color="blue", alpha=0.5) # half-transparant ax.plot(x, x+2, color="#8B008B") # RGB hex code ax.plot(x, x+3, color="#FF8C00") # RGB hex code
		Line and marker styles: To change the line width, we can use the `linewidth` or `lw` keyword argument. The line style can be selected using the `linestyle` or `ls` keyword arguments: fig, ax = plt.subplots(figsize=(12,6)) ax.plot(x, x+1, color="red", linewidth=0.25) ax.plot(x, x+2, color="red", linewidth=0.50) ax.plot(x, x+3, color="red", linewidth=1.00) ax.plot(x, x+4, color="red", linewidth=2.00) # possible linestype options ‘-‘, ‘–’, ‘-.’, ‘:’, ‘steps’ ax.plot(x, x+5, color="green", lw=3, linestyle='-') ax.plot(x, x+6, color="green", lw=3, ls='-.') ax.plot(x, x+7, color="green", lw=3, ls=':') # custom dash line, = ax.plot(x, x+8, color="black", lw=1.50) line.set_dashes([5, 10, 15, 10]) # format: line length, space length, ... # possible marker symbols: marker = '+', 'o', '*', 's', ',', '.', '1', '2', '3', '4', ... ax.plot(x, x+ 9, color="blue", lw=3, ls='-', marker='+') ax.plot(x, x+10, color="blue", lw=3, ls='--', marker='o') ax.plot(x, x+11, color="blue", lw=3, ls='-', marker='s') ax.plot(x, x+12, color="blue", lw=3, ls='--', marker='1') # marker size and color ax.plot(x, x+13, color="purple", lw=1, ls='-', marker='o', markersize=2) ax.plot(x, x+14, color="purple", lw=1, ls='-', marker='o', markersize=4) ax.plot(x, x+15, color="purple", lw=1, ls='-', marker='o', markersize=8, markerfacecolor="red") ax.plot(x, x+16, color="purple", lw=1, ls='-', marker='s', markersize=8, markerfacecolor="yellow", markeredgewidth=3, markeredgecolor="green");
	Plot range	We can configure the ranges of the axes using the `set_ylim` and `set_xlim` methods in the axis object, or `axis('tight')` for automatically getting "tightly fitted" axes ranges: fig, axes = plt.subplots(1, 3, figsize=(12, 4)) axes[0].plot(x, x2, x, x3) axes[0].set_title("default axes ranges") axes[1].plot(x, x2, x, x3) axes[1].axis('tight') axes[1].set_title("tight axes") axes[2].plot(x, x2, x, x3) axes[2].set_ylim([0, 60]) axes[2].set_xlim([2, 5]) axes[2].set_title("custom axes range");
Special Plot Types	There are many specialized plots we can create, such as barplots, histograms, scatter plots, and much more. Most of these type of plots we will actually create using seaborn, a statistical plotting library for Python. But here are a few examples of these type of plots:

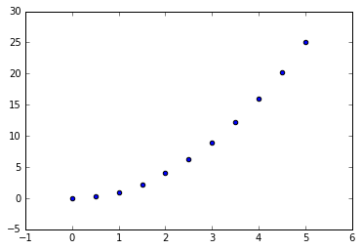

	Scatter plots	plt.scatter(x,y)

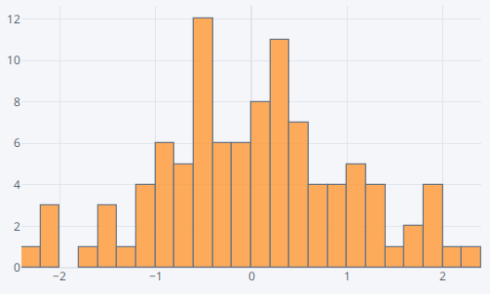

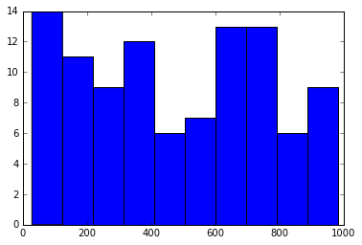

	Histograms	from random import sample data = sample(range(1, 1000), 100) plt.hist(data)

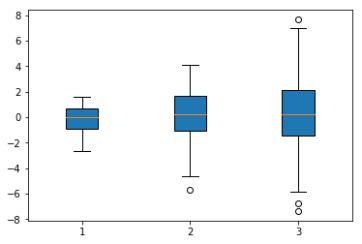

	Barplots	data = [np.random.normal(0, std, 100) for std in range(1, 4)] # rectangular box plot plt.boxplot(data,vert=True,patch_artist=True);

Advanced Matplotlib Concepts

In this lecture we cover some more advanced topics which you won't usually use as often. You can always reference the documentation for more resources!

Forther reading:

		Description/Example
import numpy as np x = np.linspace(0, 5, 11) y = x ** 2
Logarithmec scale
Placement of ticks and custom tick labels
Placement of ticks and custom tick labels	Scientific notation
Axis number and axis label spacing
Axis number and axis label spacing	Axis position adjustments
Axis grid
Axis spines
Twin axes
Axes where x and y is zero
Other 2D plot styles
Text annotation
Figures with multiple subplots and insets
	subplots
	subplot2grid
	gridspec

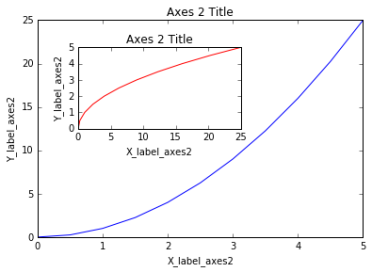

	add_axes
Colormap and contour figures
	pcolor
	imshow
	contour
3D figures		To use 3D graphics in matplotlib, we first need to create an instance of the `Axes3D` class. 3D axes can be added to a matplotlib figure canvas in exactly the same way as 2D axes; or, more conveniently, by passing a `projection='3d'` keyword argument to the `add_axes` or `add_subplot` methods. from mpl_toolkits.mplot3d.axes3d import Axes3D

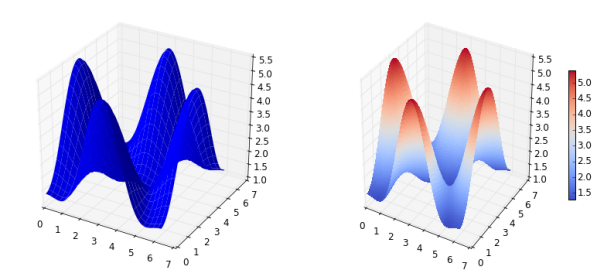

	Surface plots	fig = plt.figure(figsize=(14,6)) # `ax` is a 3D-aware axis instance because of the projection='3d' keyword argument to add_subplot ax = fig.add_subplot(1, 2, 1, projection='3d') p = ax.plot_surface(X, Y, Z, rstride=4, cstride=4, linewidth=0) # surface_plot with color grading and color bar ax = fig.add_subplot(1, 2, 2, projection='3d') p = ax.plot_surface(X, Y, Z, rstride=1, cstride=1, cmap=matplotlib.cm.coolwarm, linewidth=0, antialiased=False) cb = fig.colorbar(p, shrink=0.5)

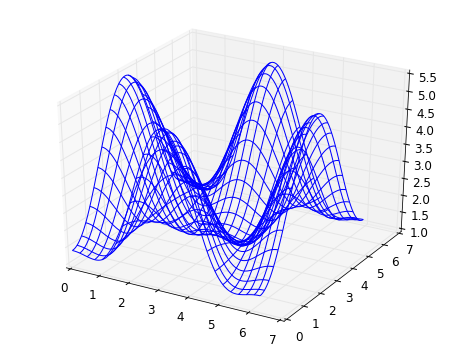

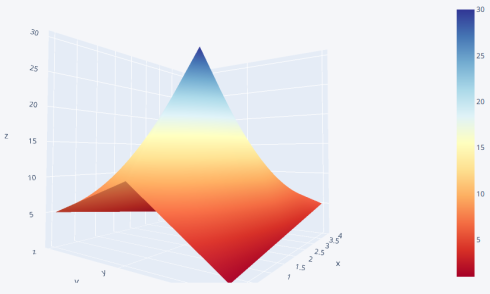

	Wire-frame plot	fig = plt.figure(figsize=(8,6)) ax = fig.add_subplot(1, 1, 1, projection='3d') p = ax.plot_wireframe(X, Y, Z, rstride=4, cstride=4)

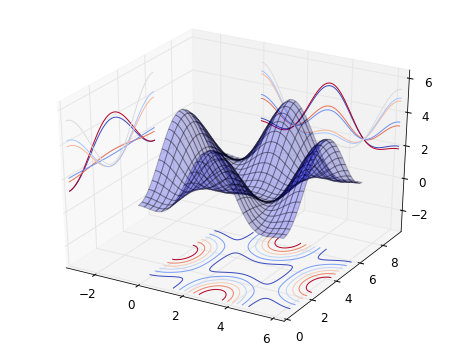

	Coutour plots with projections	fig = plt.figure(figsize=(8,6)) ax = fig.add_subplot(1,1,1, projection='3d') ax.plot_surface(X, Y, Z, rstride=4, cstride=4, alpha=0.25) cset = ax.contour(X, Y, Z, zdir='z', offset=-np.pi, cmap=matplotlib.cm.coolwarm) cset = ax.contour(X, Y, Z, zdir='x', offset=-np.pi, cmap=matplotlib.cm.coolwarm) cset = ax.contour(X, Y, Z, zdir='y', offset=3np.pi, cmap=matplotlib.cm.coolwarm) ax.set_xlim3d(-np.pi, 2np.pi); ax.set_ylim3d(0, 3np.pi); ax.set_zlim3d(-np.pi, 2np.pi);

Data visualization with Seaborn

Seaborn is a statistical visualization library designed to work with pandas dataframes well.

import seaborn as sns
%matplotlib inline

Built-in data sets

Seaborn comes with built-in data sets!

tips = sns.load_dataset('tips')
tips.head()
# Output:
    total_bill    tip     sex  smoker   day    time  size
0        16.99   1.01  Female      No   Sun  Dinner     2
1        10.34   1.66    Male      No   Sun  Dinner     3
2        21.01   3.50    Male      No   Sun  Dinner     3
3        23.68   3.31    Male      No   Sun  Dinner     2
4        24.59   3.61  Female      No   Sun  Dinner     4

Distribution Plots

import seaborn as sns
%matplotlib inline

Description/Example Output/Figure

Distribution of a univariate set of observations

distplot

The distplot shows the distribution of a univariate set of observations:

sns.distplot(tips['total_bill'])
# Safe to ignore warnings

To remove the kde layer and just have the histogram use:

sns.distplot(tips['total_bill'],kde=False,bins=30)

Match up two distplots for bivariate data

jointplot()

jointplot() allows you to basically match up two distplots for bivariate data. With your choice of what kind parameter to compare with:

scatter, reg, resid, kde, hex

sns.jointplot(x='total_bill',y='tip',data=tips,kind='scatter')

sns.jointplot(x='total_bill',y='tip',data=tips,kind='hex')

sns.jointplot(x='total_bill',y='tip',data=tips,kind='reg')

Plot pairwise relationships across an entire dataframe

pairplot

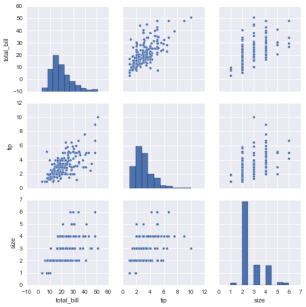

pairplot will plot pairwise relationships across an entire dataframe (for the numerical columns) and supports a color hue argument (for categorical columns):

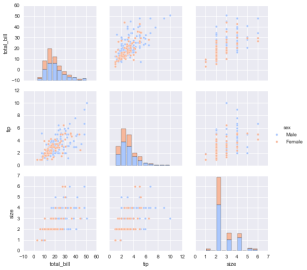

sns.pairplot(tips)

sns.pairplot(tips,hue='sex',palette='coolwarm')

Draw a dash mark for every point on a univariate distribution

rugplot

rugplots are actually a very simple concept, they just draw a dash mark for every point on a univariate distribution. They are the building block of a KDE plot:

sns.rugplot(tips['total_bill'])

Kernel Density Estimation plots

kdeplot

kdeplots are Kernel Density Estimation plots. These KDE plots replace every single observation with a Gaussian (Normal) distribution centered around that value. For example:

# Don't worry about understanding this code!
# It's just for the diagram below
import numpy as np
import matplotlib.pyplot as plt
from scipy import stats

#Create dataset
dataset = np.random.randn(25)

# Create another rugplot
sns.rugplot(dataset);

# Set up the x-axis for the plot
x_min = dataset.min() - 2
x_max = dataset.max() + 2

# 100 equally spaced points from x_min to x_max
x_axis = np.linspace(x_min,x_max,100)

# Set up the bandwidth, for info on this:
url = 'http://en.wikipedia.org/wiki/Kernel_density_estimation#Practical_estimation_of_the_bandwidth'

bandwidth = ((4*dataset.std()**5)/(3*len(dataset)))**.2


# Create an empty kernel list
kernel_list = []

# Plot each basis function
for data_point in dataset:

    # Create a kernel for each point and append to list
    kernel = stats.norm(data_point,bandwidth).pdf(x_axis)
    kernel_list.append(kernel)

    #Scale for plotting
    kernel = kernel / kernel.max()
    kernel = kernel * .4
    plt.plot(x_axis,kernel,color = 'grey',alpha=0.5)

plt.ylim(0,1)

# To get the kde plot we can sum these basis functions.

# Plot the sum of the basis function
sum_of_kde = np.sum(kernel_list,axis=0)

# Plot figure
fig = plt.plot(x_axis,sum_of_kde,color='indianred')

# Add the initial rugplot
sns.rugplot(dataset,c = 'indianred')

# Get rid of y-tick marks
plt.yticks([])

# Set title
plt.suptitle("Sum of the Basis Functions")

So with our tips dataset:

sns.kdeplot(tips['total_bill'])
sns.rugplot(tips['total_bill'])

sns.kdeplot(tips['tip'])
sns.rugplot(tips['tip'])

Categorical Data Plots

Now let's discuss using seaborn to plot categorical data! There are a few main plot types for this:

factorplot
boxplot
violinplot
stripplot
swarmplot
barplot
countplot

		Description/Example
import seaborn as sns %matplotlib inline

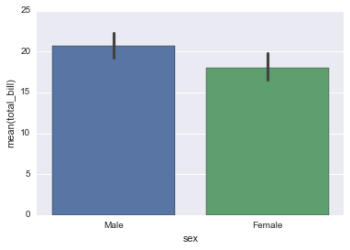

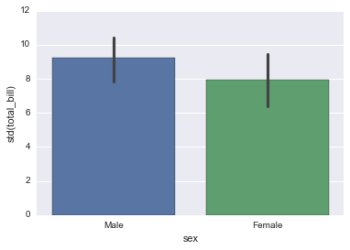

Barplot and Countplot	`sns.barplot`	`barplot` is a general plot that allows you to aggregate the categorical data based off some function, by default the mean: sns.barplot(x='sex',y='total_bill',data=tips)
	`sns.barplot`	You can change the estimator object to your own function, that converts a vector to a scalar: import numpy as np sns.barplot(x='sex',y='total_bill',data=tips,estimator=np.std)

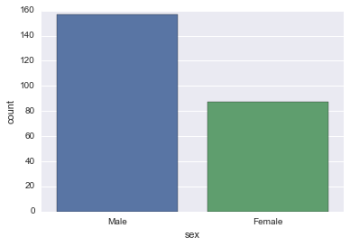

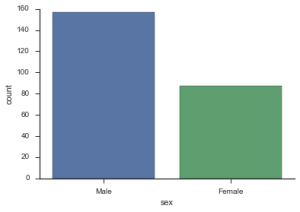

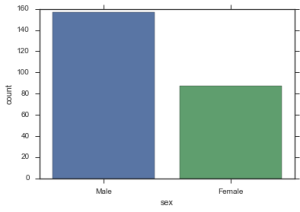

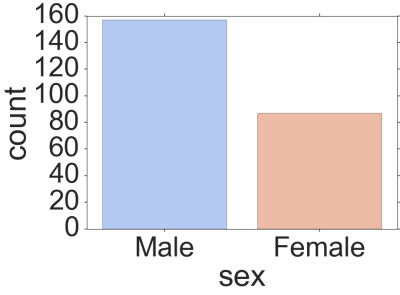

	`sns.countplot`	This is essentially the same as barplot except the estimator is explicitly counting the number of occurrences. Which is why we only pass the x value: sns.countplot(x='sex',data=tips)
Boxplot and Violinplot		Boxplots and Violinplots are used to shown the distribution of categorical data.

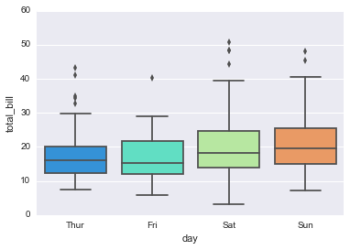

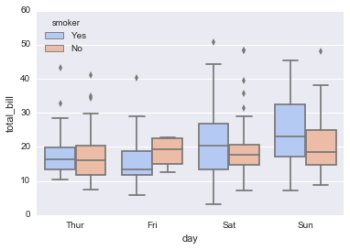

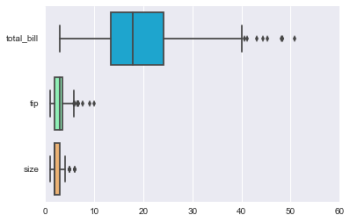

	`sns.boxplot`	A box plot (or box-and-whisker plot) shows the distribution of quantitative data in a way that facilitates comparisons between variables or across levels of a categorical variable. The box shows the quartiles of the dataset while the whiskers extend to show the rest of the distribution, except for points that are determined to be “outliers” using a method that is a function of the inter-quartile range. sns.boxplot(x="day", y="total_bill", data=tips,palette='rainbow') # Can do entire dataframe with orient='h' sns.boxplot(data=tips,palette='rainbow',orient='h') sns.boxplot(x="day", y="total_bill", hue="smoker",data=tips, palette="coolwarm")

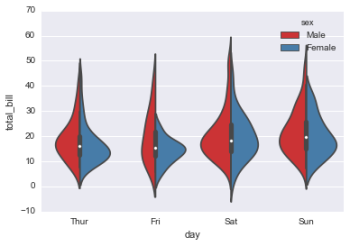

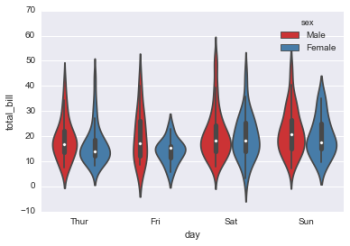

	`sns.violinplot`	A violin plot plays a similar role as a box and whisker plot. It shows the distribution of quantitative data across several levels of one (or more) categorical variables such that those distributions can be compared. Unlike a box plot, in which all of the plot components correspond to actual datapoints, the violin plot features a kernel density estimation of the underlying distribution. sns.violinplot(x="day", y="total_bill", data=tips,palette='rainbow') sns.violinplot(x="day", y="total_bill", data=tips,hue='sex',palette='Set1') sns.violinplot(x="day", y="total_bill", data=tips,hue='sex',split=True,palette='Set1')

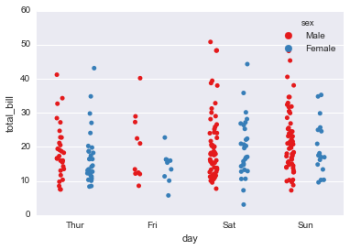

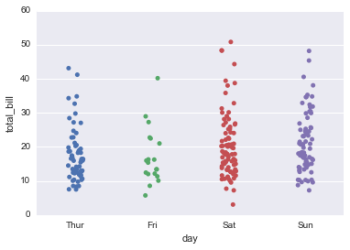

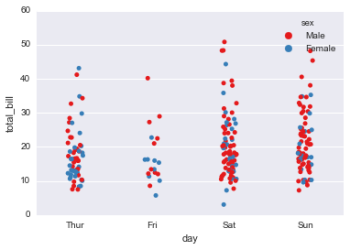

Stripplot and Swarmplot	`sns.stripplot`	The stripplot will draw a scatterplot where one variable is categorical. A strip plot can be drawn on its own, but it is also a good complement to a box or violin plot in cases where you want to show all observations along with some representation of the underlying distribution. sns.stripplot(x="day", y="total_bill", data=tips) sns.stripplot(x="day", y="total_bill", data=tips,jitter=True) sns.stripplot(x="day", y="total_bill", data=tips,jitter=True,hue='sex',palette='Set1') sns.stripplot(x="day", y="total_bill", data=tips,jitter=True,hue='sex',palette='Set1',split=True)

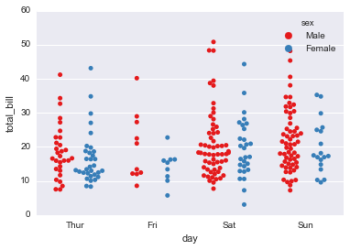

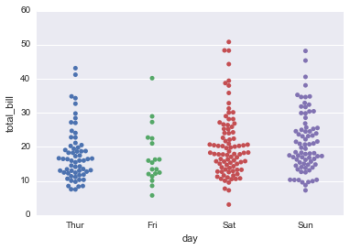

Stripplot and Swarmplot	`sns.swarmplot`	The swarmplot is similar to stripplot(), but the points are adjusted (only along the categorical axis) so that they don’t overlap. This gives a better representation of the distribution of values, although it does not scale as well to large numbers of observations (both in terms of the ability to show all the points and in terms of the computation needed to arrange them). sns.swarmplot(x="day", y="total_bill", data=tips) sns.swarmplot(x="day", y="total_bill",hue='sex',data=tips, palette="Set1", split=True)

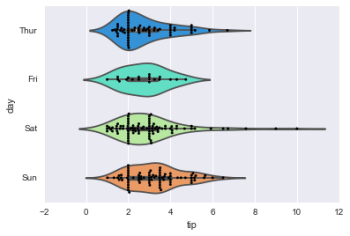

Combining Categorical Plots		sns.violinplot(x="tip", y="day", data=tips,palette='rainbow') sns.swarmplot(x="tip", y="day", data=tips,color='black',size=3)
Factorplot	`sns.factorplot`	factorplot is the most general form of a categorical plot. It can take in a kind parameter to adjust the plot type:<syntaxhighlight lang="python3"> sns.factorplot(x='sex',y='total_bill',data=tips,kind='bar')

Matrix Plots

Matrix plots allow you to plot data as color-encoded matrices and can also be used to indicate clusters within the data (later in the machine learning section we will learn how to formally cluster data).

		Description/Example
import seaborn as sns %matplotlib inline flights = sns.load_dataset('flights') tips = sns.load_dataset('tips') tips.head() # Output: total_bill tip sex smoker day time size 0 16.99 1.01 Female No Sun Dinner 2 1 10.34 1.66 Male No Sun Dinner 3 2 21.01 3.50 Male No Sun Dinner 3 3 23.68 3.31 Male No Sun Dinner 2 4 24.59 3.61 Female No Sun Dinner 4 flights.head() # Output: year month passengers 0 1949 January 112 1 1949 February 118 2 1949 March 132 3 1949 April 129 4 1949 May 121

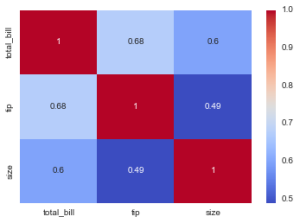

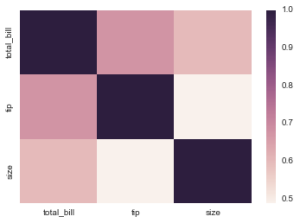

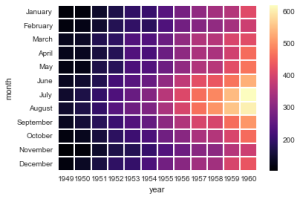

Heatmap	`sns.heatmap`	In order for a `heatmap` to work properly, your data should already be in a matrix form, the `sns.heatmap` function basically just colors it in for you. For example: # Matrix form for correlation data tips.corr() # Output: total_bill tip size total_bill 1.000000 0.675734 0.598315 tip 0.675734 1.000000 0.489299 size 0.598315 0.489299 1.000000 sns.heatmap(tips.corr()) sns.heatmap(tips.corr(),cmap='coolwarm',annot=True)

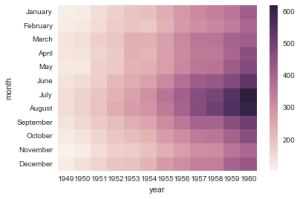

Heatmap	`sns.heatmap`	Or for the flights data: flights.pivot_table(values='passengers',index='month',columns='year') # Output: year 1949 1950 1951 1952 1953 1954 1955 1956 1957 1958 1959 1960 month January 112 115 145 171 196 204 242 284 315 340 360 417 February 118 126 150 180 196 188 233 277 301 318 342 391 March 132 141 178 193 236 235 267 317 356 362 406 419 April 129 135 163 181 235 227 269 313 348 348 396 461 May 121 125 172 183 229 234 270 318 355 363 420 472 June 135 149 178 218 243 264 315 374 422 435 472 535 July 148 170 199 230 264 302 364 413 465 491 548 622 August 148 170 199 242 272 293 347 405 467 505 559 606 September 136 158 184 209 237 259 312 355 404 404 463 508 October 119 133 162 191 211 229 274 306 347 359 407 461 November 104 114 146 172 180 203 237 271 305 310 362 390 December 118 140 166 194 201 229 278 306 336 337 405 432 pvflights = flights.pivot_table(values='passengers',index='month',columns='year') sns.heatmap(pvflights) sns.heatmap(pvflights,cmap='magma',linecolor='white',linewidths=1)

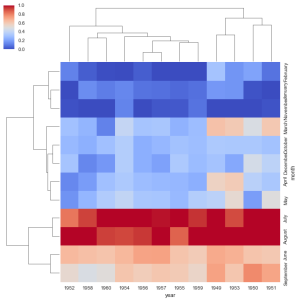

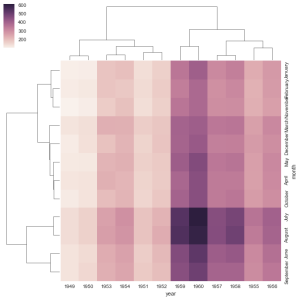

Clustermap	`sns.clustermap`	The clustermap uses hierarchal clustering to produce a clustered version of the heatmap. For example: sns.clustermap(pvflights) Notice now how the years and months are no longer in order, instead they are grouped by similarity in value (passenger count). That means we can begin to infer things from this plot, such as August and July being similar (makes sense, since they are both summer travel months) # More options to get the information a little clearer like normalization sns.clustermap(pvflights,cmap='coolwarm',standard_scale=1)

Grids

Grids are general types of plots that allow you to map plot types to rows and columns of a grid, this helps you create similar plots separated by features.

		Description/Example
import seaborn as sns import matplotlib.pyplot as plt %matplotlib inline iris = sns.load_dataset('iris') iris.head() # Ouput: sepal_length sepal_width petal_length petal_width species 0 5.1 3.5 1.4 0.2 setosa 1 4.9 3.0 1.4 0.2 setosa 2 4.7 3.2 1.3 0.2 setosa 3 4.6 3.1 1.5 0.2 setosa 4 5.0 3.6 1.4 0.2 setosa

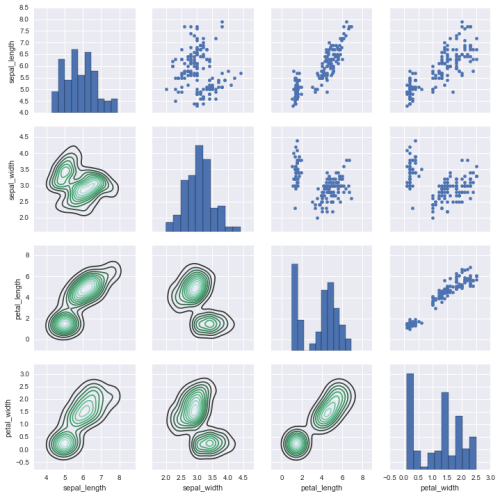

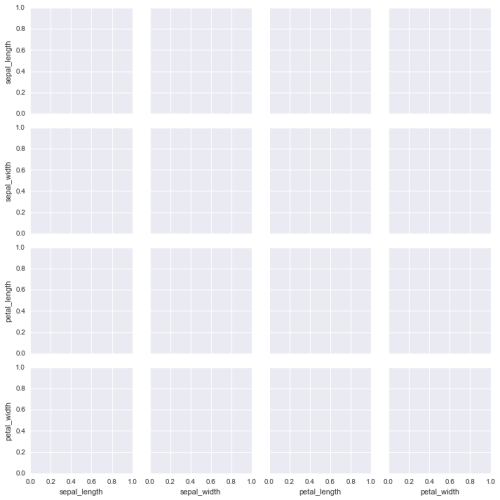

PairGrid	`sns.PairGrid()`	Pairgrid is a subplot grid for plotting pairwise relationships in a dataset. # Just the Grid sns.PairGrid(iris)

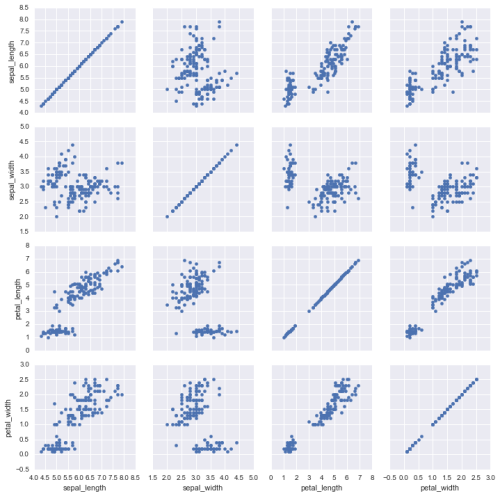

		Then you map to the grid g = sns.PairGrid(iris) g.map(plt.scatter)
		Map to upper,lower, and diagonal g = sns.PairGrid(iris) g.map_diag(plt.hist) g.map_upper(plt.scatter) g.map_lower(sns.kdeplot)

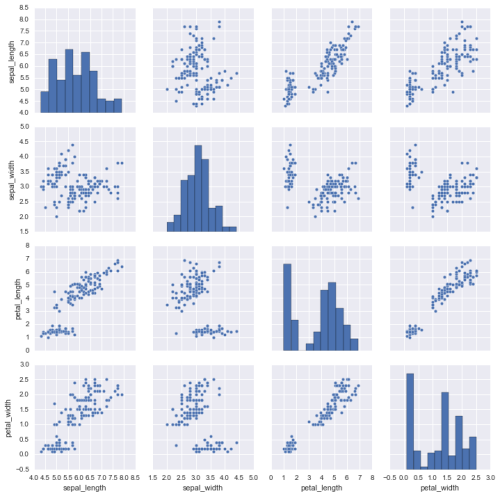

Pairplot	`sns.pairplot()`	A `pairplot` is a simpler version of `PairGrid` (you'll use quite often) sns.pairplot(iris)

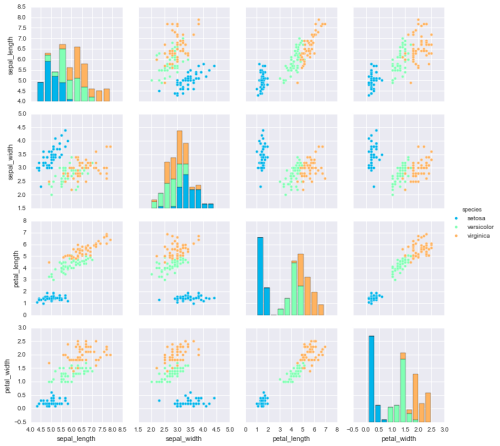

Pairplot	`sns.pairplot()`	sns.pairplot(iris,hue='species',palette='rainbow')
Facet Grid		FacetGrid is the general way to create grids of plots based off of a feature: tips = sns.load_dataset('tips') # tips.head() total_bill tip sex smoker day time size 0 16.99 1.01 Female No Sun Dinner 2 1 10.34 1.66 Male No Sun Dinner 3 2 21.01 3.50 Male No Sun Dinner 3 3 23.68 3.31 Male No Sun Dinner 2 4 24.59 3.61 Female No Sun Dinner 4
	`sns.FacetGrid()`	# Just the Grid g = sns.FacetGrid(tips, col="time", row="smoker")
		g = sns.FacetGrid(tips, col="time", row="smoker") g = g.map(plt.hist, "total_bill")
		g = sns.FacetGrid(tips, col="time", row="smoker",hue='sex') # Notice hwo the arguments come after plt.scatter call g = g.map(plt.scatter, "total_bill", "tip").add_legend()
JointGri	`sns.JointGrid()`	JointGrid is the general version for jointplot() type grids, for a quick example: g = sns.JointGrid(x="total_bill", y="tip", data=tips)
JointGri	`sns.JointGrid()`	g = sns.JointGrid(x="total_bill", y="tip", data=tips) g = g.plot(sns.regplot, sns.distplot)

Regression plots

Seaborn has many built-in capabilities for regression plots, however we won't really discuss regression until the machine learning section of the course, so we will only cover the lmplot() function for now.

lmplot allows you to display linear models, but it also conveniently allows you to split up those plots based off of features, as well as coloring the hue based off of features.

		Description/Example
import seaborn as sns %matplotlib inline tips = sns.load_dataset('tips') tips.head() # Output: total_bill tip sex smoker day time size 0 16.99 1.01 Female No Sun Dinner 2 1 10.34 1.66 Male No Sun Dinner 3 2 21.01 3.50 Male No Sun Dinner 3 3 23.68 3.31 Male No Sun Dinner 2 4 24.59 3.61 Female No Sun Dinner 4

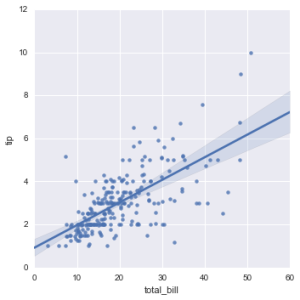

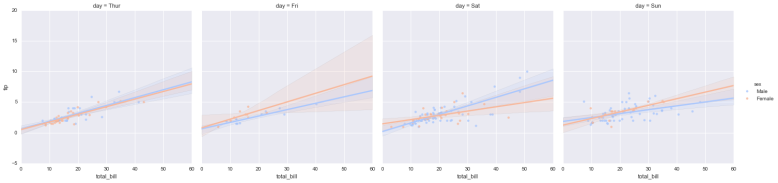

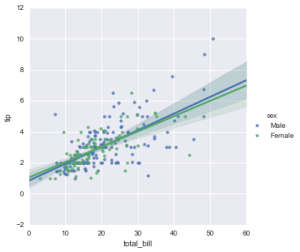

The lmplot() function		sns.lmplot(x='total_bill',y='tip',data=tips)

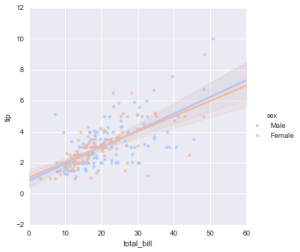

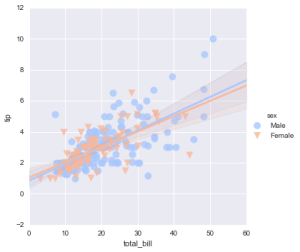

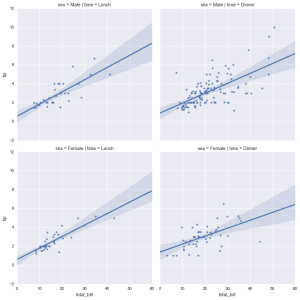

		sns.lmplot(x='total_bill',y='tip',data=tips,hue='sex')
		sns.lmplot(x='total_bill',y='tip',data=tips,hue='sex',palette='coolwarm')
	Working with Markers	lmplot kwargs get passed through to regplot which is a more general form of lmplot(). regplot has a scatter_kws parameter that gets passed to plt.scatter. So you want to set the s parameter in that dictionary, which corresponds (a bit confusingly) to the squared markersize. In other words you end up passing a dictionary with the base matplotlib arguments, in this case, s for size of a scatter plot. In general, you probably won't remember this off the top of your head, but instead reference the documentation. # http://matplotlib.org/api/markers_api.html sns.lmplot(x='total_bill',y='tip',data=tips,hue='sex',palette='coolwarm', markers=['o','v'],scatter_kws={'s':100})

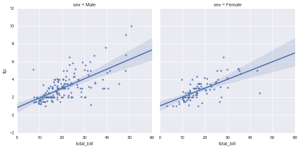

	Using a Grid	We can add more variable separation through columns and rows with the use of a grid. Just indicate this with the col or row arguments: sns.lmplot(x='total_bill',y='tip',data=tips,col='sex')
		sns.lmplot(x="total_bill", y="tip", row="sex", col="time",data=tips)
		sns.lmplot(x='total_bill',y='tip',data=tips,col='day',hue='sex',palette='coolwarm')
	Aspect and Size	Seaborn figures can have their size and aspect ratio adjusted with the size and aspect parameters: sns.lmplot(x='total_bill',y='tip',data=tips,col='day',hue='sex',palette='coolwarm', aspect=0.6,size=8)

Style and Color

Check out the documentation page for more info on these topics: https://stanford.edu/~mwaskom/software/seaborn/tutorial/aesthetics.html

	Method/Operator	Description/Example
import seaborn as sns import matplotlib.pyplot as plt %matplotlib inline tips = sns.load_dataset('tips')
Styles	`sns.set_style()`	sns.countplot(x='sex',data=tips)
		You can set particular styles: sns.set_style('white') sns.countplot(x='sex',data=tips)
		sns.set_style('ticks') sns.countplot(x='sex',data=tips,palette='deep')
Spine Removal	`sns.despine()`	sns.countplot(x='sex',data=tips) sns.despine()
Spine Removal	`sns.despine()`	sns.countplot(x='sex',data=tips) sns.despine(left=True)
Size and Aspect	Size `plt.figure(figsize=())`	You can use matplotlib's `plt.figure(figsize=(width,height` to change the size of most seaborn plots. You can control the size and aspect ratio of most seaborn grid plots by passing in parameters: size, and aspect. For example: # Non Grid Plot plt.figure(figsize=(12,3)) sns.countplot(x='sex',data=tips)
Size and Aspect	Grid Type	# Grid Type Plot sns.lmplot(x='total_bill',y='tip',size=2,aspect=4,data=tips)

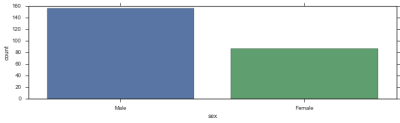

Scale and Context	`set_context()`	The `set_context()` allows you to override default parameters: sns.set_context('poster',font_scale=4) sns.countplot(x='sex',data=tips,palette='coolwarm')

Data visualization with Plotly and Cufflinks

Plotly is a library that allows you to create interactive plots that you can use in dashboards or websites (you can save them as html files or static images).

Check out the plotly.py documentation and gallery to learn more: https://plot.ly/python/

Plotly plots can be easily saved online and shared at https://chart-studio.plot.ly. Take a look at this example: https://chart-studio.plot.ly/~jackp/671/average-effective-tax-rates-by-income-percentiles-1960-2004/#/

Installation

In order for this all to work, you'll need to install plotly and cufflinks to call plots directly off of a pandas dataframe. Cufflinks is not currently available through conda but available through pip. Install the libraries at your command line/terminal using:

pip install plotly
pip install cufflinks

Imports and Set-up

import pandas as pd
import numpy as np
%matplotlib inline

from plotly import __version__
from plotly.offline import download_plotlyjs, init_notebook_mode, plot, iplot
print(__version__) # requires version >= 1.9.0

import cufflinks as cf

# For Notebooks
init_notebook_mode(connected=True)

# For offline use
cf.go_offline()

Data

df = pd.DataFrame(np.random.randn(100,4),columns='A B C D'.split())
df2 = pd.DataFrame({'Category':['A','B','C'],'Values':[32,43,50]})

df.head()
# Output:
           A           B           C           D
0   1.878725    0.688719    1.066733    0.543956
1   0.028734    0.104054    0.048176    1.842188
2  -0.158793    0.387926   -0.635371   -0.637558
3  -1.221972    1.393423   -0.299794   -1.113622
4   1.253152   -0.537598    0.302917   -2.546083

df2.head()
# Output:
    Category   Values
0          A       32
1          B       43
2          C       50

	Method/Operator	Description/Example	Output/Figure

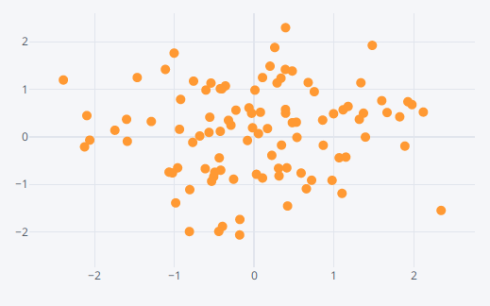

Using Cufflinks and iplot()	Scatter	df.iplot(kind='scatter',x='A',y='B',mode='markers',size=10) https://plot.ly/~adeloaleman/15	https://plot.ly/~adeloaleman/15

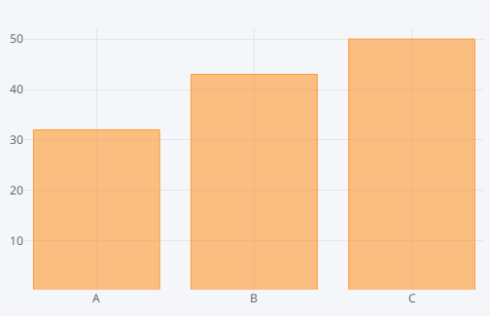

	Bar Plots	df2.iplot(kind='bar',x='Category',y='Values') https://plot.ly/~adeloaleman/13	https://plot.ly/~adeloaleman/13
	Boxplots	df.iplot(kind='box') https://plot.ly/~adeloaleman/11	https://plot.ly/~adeloaleman/11
	3d Surface	df3 = pd.DataFrame({'x':[1,2,3,4,5],'y':[10,20,30,20,10],'z':[5,4,3,2,1]}) df3.iplot(kind='surface',colorscale='rdylbu') https://plot.ly/~adeloaleman/17	https://plot.ly/~adeloaleman/17

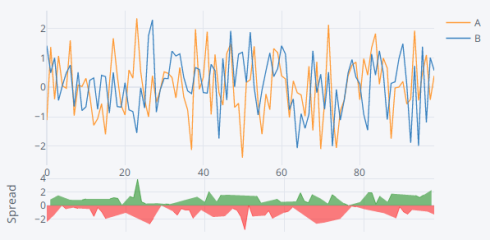

	Spread	df[['A','B']].iplot(kind='spread') https://plot.ly/~adeloaleman/19	https://plot.ly/~adeloaleman/19
	Histogram	df['A'].iplot(kind='hist',bins=25) https://plot.ly/~adeloaleman/21	https://plot.ly/~adeloaleman/21
	Bubble	df.iplot(kind='bubble',x='A',y='B',size='C') https://plot.ly/~adeloaleman/23	https://plot.ly/~adeloaleman/23

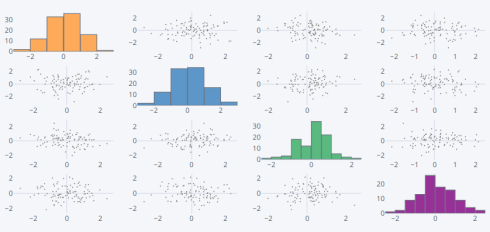

	Scatter_matrix	df.scatter_matrix() # Similar to sns.pairplot() https://plot.ly/~adeloaleman/25	https://plot.ly/~adeloaleman/25

Pandas Built-in Data Visualization

Style Sheets

Plot Types

Area

Barplots

Histograms

Line Plots

Scatter Plots

BoxPlots

Hexagonal Bin Plot

Kernel Density Estimation plot (KDE)

Data visualization with Matplotlib

Installation

Basic example

Creating Multiplots on Same Canvas

Matplotlib Object Oriented Method

subplots()

Figure size, aspect ratio and DPI

Saving figures

Legends, labels and titles

Setting colors, linewidths, linetypes

Plot range

Special Plot Types

Scatter plots

Histograms

Barplots

Advanced Matplotlib Concepts

Logarithmec scale

Placement of ticks and custom tick labels

Scientific notation

Axis number and axis label spacing

Axis position adjustments

Axis grid

Axis spines

Twin axes

Axes where x and y is zero

Other 2D plot styles

Text annotation

Figures with multiple subplots and insets

subplots

subplot2grid

gridspec

add_axes

Colormap and contour figures

pcolor

imshow

contour

3D figures

Surface plots

Wire-frame plot

Coutour plots with projections

Data visualization with Seaborn

Built-in data sets

Distribution Plots

Distribution of a univariate set of observations

Match up two distplots for bivariate data

Plot pairwise relationships across an entire dataframe

Draw a dash mark for every point on a univariate distribution

Kernel Density Estimation plots

Categorical Data Plots

Barplot and Countplot

Boxplot and Violinplot

Stripplot and Swarmplot

Combining Categorical Plots

Factorplot

Matrix Plots

Heatmap

Clustermap

Grids

PairGrid

Pairplot

Facet Grid

JointGri

Regression plots

The lmplot() function

Working with Markers

Using a Grid

Aspect and Size

Style and Color

Styles

`subplots()`
